Thermal vacuum test equipment

This equipment is designed to test space technology products for tightness, conduct thermophysical experiments, as well as simulate solar and infrared radiation, and study their effect on spacecraft in conditions close to space.
To section
Grade photo

Thermal vacuum testing equipment for space simulation STVI-2

STVI-2 is intended for measurement and control of optico-physical characteristics of on-board apparatuses in stage of experimental testing on the Earth as well as optico-electronics systems and devises under space conditions.

The useful diameter of the vacuum chamber is 5000 mm, height 10000 mm.

To section
Grade photo

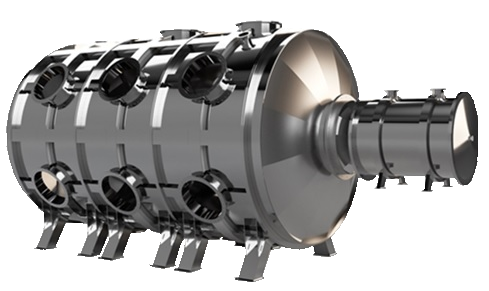

Vacuum thermal equipment for testing powerful pulsed hydrogen plasma thrusters

This stand is designed for ground-based fire tests of powerful electric propulsion engines with hydrogen as a working medium.
To section
Grade photo

Experimental thermonuclear installation Tokamak T-15MD

Tokamak is an experimental toroidal thermonuclear reactor. It is the first industrial prototype fusion reactor to use superconducting magnets to control the plasma, to test various components of the reactor and to launch fusion reactions.
To section
Grade photo

Carbothermic synthesis system

The carbothermal synthesis system is a fully automated complex consisting of eight gas and vacuum pusher furnaces designed for complex sintering and deposition processes, combined by an automatic pressurized transport line.

The complex is able to operate 24/7 for a year without the need for attendants.

To section
Grade photo

Vacuum shaft-type furnace

Vacuum shaft-type furnace is intended for baking in vacuum large welded constructions and parts of vacuum chambers produced from austenitic or martensitic materials. The baking process enable to relieve the stresses.
To section
Grade photo

Ultrahigh rectangle vacuum (UHV) chamber for basic research

The vacuum chamber is designed to receive a working pressure of 10-9 mm Hg in it. (1.3 * 10-7 Pa) and research in the field of solidstate physics.
To section
Grade photo

Thermal vacuume quipment VU-180

The vu-180 vacuum chamber with an internal diameter of 5200 mm and a height of up to 13100 mm is designed for testing products in simulated outer space. The camera is modular, which allows you to change the required working volume.
To section
Grade photo

Additional section of vacuum vessel

Additional section is intended for extension of existent vacuum chamber for ion engines tests. Section material is stainless steel. It has a set of stiffening bands. Inside diameter – 3800 mm, length – 3870 mm.
To section
Grade photo

Plasmajet engines testing equipment

Equipment is intended for hot tests of high-performance inboard plasmajet engines designed by LPSC (India).
To section
Grade photo

Gas discharge chamber STIS-1C

The chamber is designed to generate a plasma stream, as well as control it using the built-in ion-optical system. It is an integral part of the experimental particle accelerator.
To section
Grade photo

Vacuum vessel with a sample transfer system

A vacuum vessel with a sample transfer system is designed to testing products for resistance to various kinds of influences, such as: radiation exposure, exposure to ionizing radiation, exposure to vacuum, etc.
To section

Vacuum pumps

NPO"GKMP" LLC together with the research and production enterprise "Elvak"carries out the development and production of vacuum equipment, based on the technical needs of the customer, in various configurations and various degrees of automation.
To section
Grade photo
