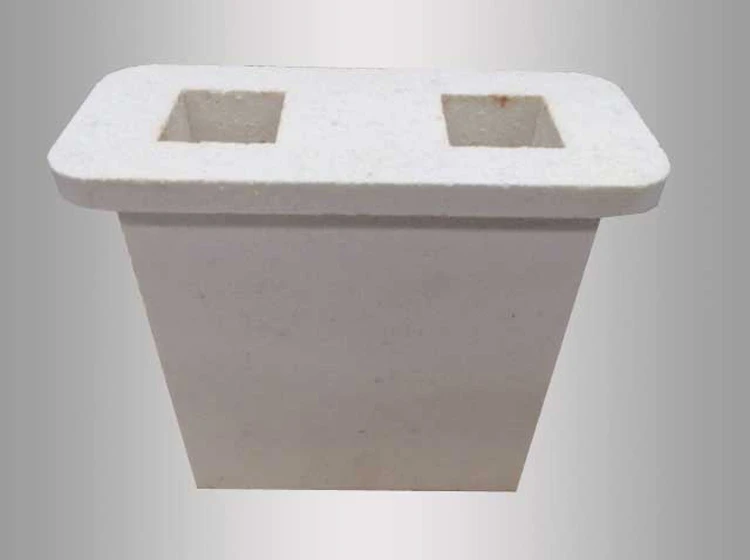

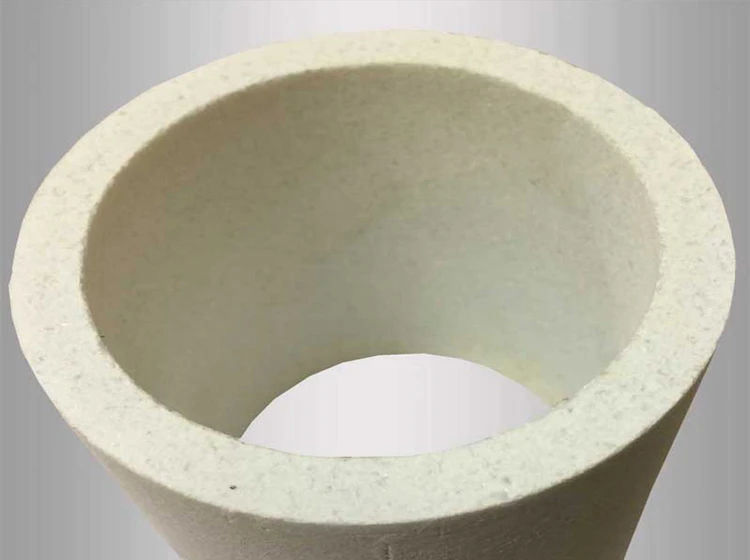

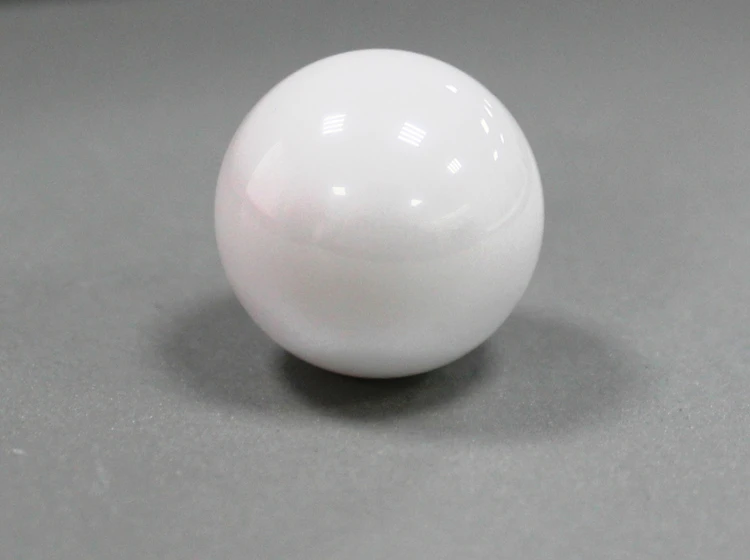

Products from zirconium dioxide ceramics (ZrO2)

Products made of zirconium dioxide technical ceramics are chemically inert (do not react with aggressive agents).
More
*On request
We will tell you in detail about our products, types and cost of delivery, prepare an individual offer and develop a technical specification
Description
Specifications

The combination of these properties renders Zirconium dioxide ceramics irreplaceable for numerous industries (from high resistive parts to medicine).


Zirconium dioxide is used to obtain extra heat resistive products, heat resistive enamel, refractory glass, different types of ceramics, ceramic pigments, thermal protective coatings, catalyzers, cutters and abrasive materials. Recently zirconium dioxide is widely used in fiber optics and production of ceramics to be integrated in electronic devices.


Zirconium dioxide (ZrO2) has a unique set of properties, such as:

  • High hardness
  • Perfect corrosion resistance
  • Low thermal conductivity
  • Crack resistance
  • Robustness at high temperatures

Characteristics:

  • Maintain robustness at high temperatures (melting point 2715 °С);
  • High hardness;
  • Corrosion resistance;
  • Low thermal conductivity.

Application:

  • Facing for worn-off hardware;
  • Roll bearings;
  • Grinding bodies;

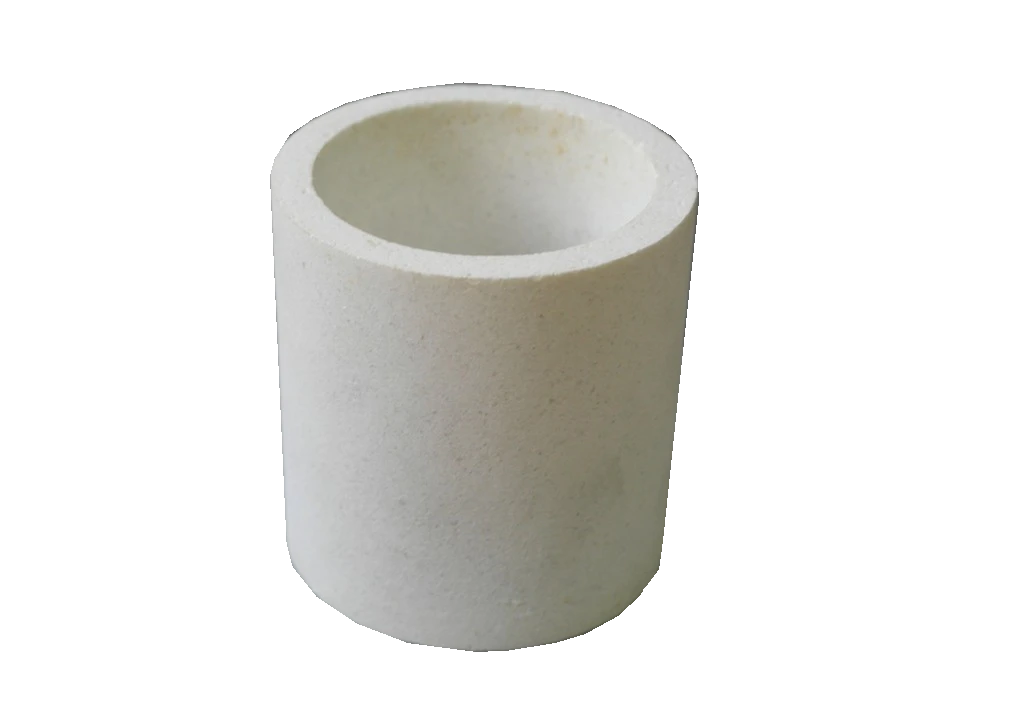

  • Crucibles;
  • Screw conveyors;
  • Elements of valves and shut-offs;
  • Rolls for milling fittings;
  • Elements for oxygen sensors;
  • Heaters;
  • Heat-resistive products;
  • Plungers;
  • Ceramic insulators.

We supply zirconium dioxide products of different design per Customer’s individual drawings.

Basic properties of the material ZrO2 95%+ Y2O3 5%

Property Meaning
Density, g/cm3

6.03

Open porosity, %

0

Vickers hardness

1150 (HV0.5)

Elasticity modulus, GPa

205

Flexural strength, MPa

1300

Compressive strength, MPa

3000

Thermal conductivity at 20-100°С, W/mK

2.0

Thermal resistance

280 (△ T °С)

Linear thermal expansion coefficient at 20-1000°С, 10-6К-1

10-11

Volumetric specific resistance (20°С)

≥1010 (Ω)

Maximal operating temperature

1000





Material can be used with alternative percentage ZrO2 + Y2O3.



It is possible to use calcium oxide or magnesium oxide as stabilizer, if so requested by the Customer.



The “NPO “GKMP” LLC supplies zirconium dioxide products of different design per Customer’s individual drawings.
