ZTA-based ceramic products

ZTA-based ceramic products

ZTA-based ceramic products

ZTA is a combination of alumina and 10-20% zirconium

More

*On request

We will tell you in detail about our products, types and cost of delivery, prepare an individual offer and develop a technical specification

Place an order Get a commercial offer

Description

Specifications

ZTA properties:

Additional hardness and viscosity compared to that of aluminum oxide
Additional hardness and viscosity compared to that of aluminum oxide
High corrosion resistance
High fracture viscosity
High flexural strength

Application:

Insulators, sensors, piston bushings and pump components;
Liquid supply system components;
LED chip carriers.

The main characteristics of the material:

Property	Meaning
ZrO, %	20
Al₂O₃+ZrO₂, %	30
Density, g/cm³	≥4.00
Water absorbed, %	0
Hardness, HV(GPa)	1650
Flexural strength, MPa	400-500
Compression strength, MPa	2800
Fracture viscosity, MPa m³/2	9.8
Elasticity modulus, GPa	310
Maximal operating temperature, оС	1450
Sintering temperature, ^оС	1650
Thermal expansion coefficient, X¹⁰-6/^oC	8.2
Thermal conductivity, W/m • K(25-300°С)	9.8

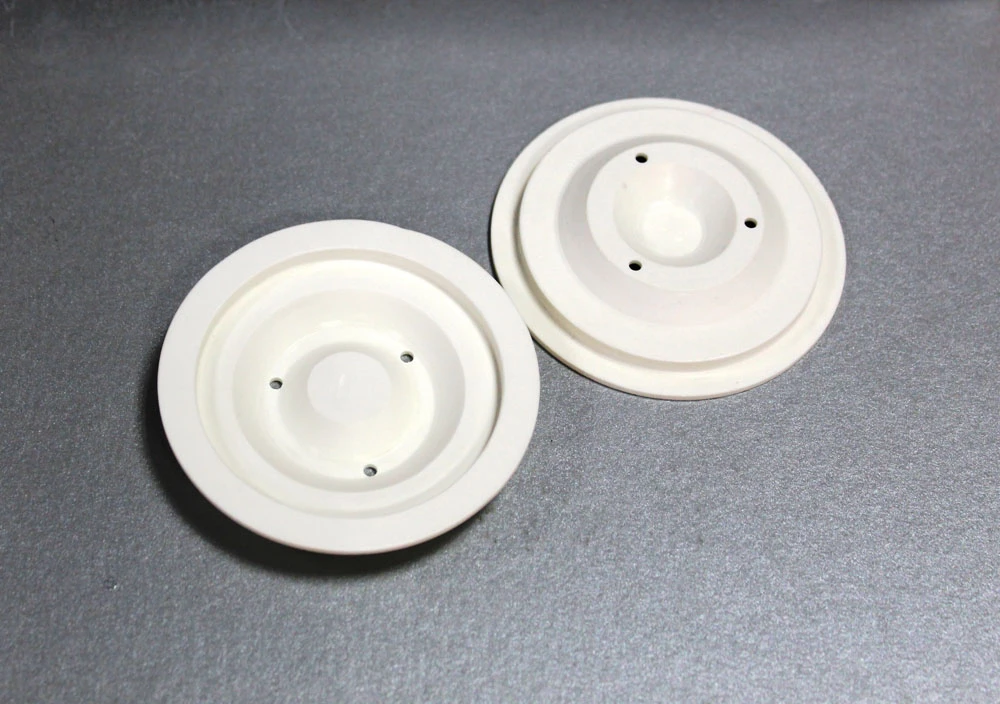

The “NPO “GKMP” LLC supplies ZTA products of different design per Customer’s individual drawings.
Maximal operating temperature of ZTA products - 1450°С. ZTA is often used to produce insulators, sensors and pump components, fluid supply system components, casing and LED chips carriers.
