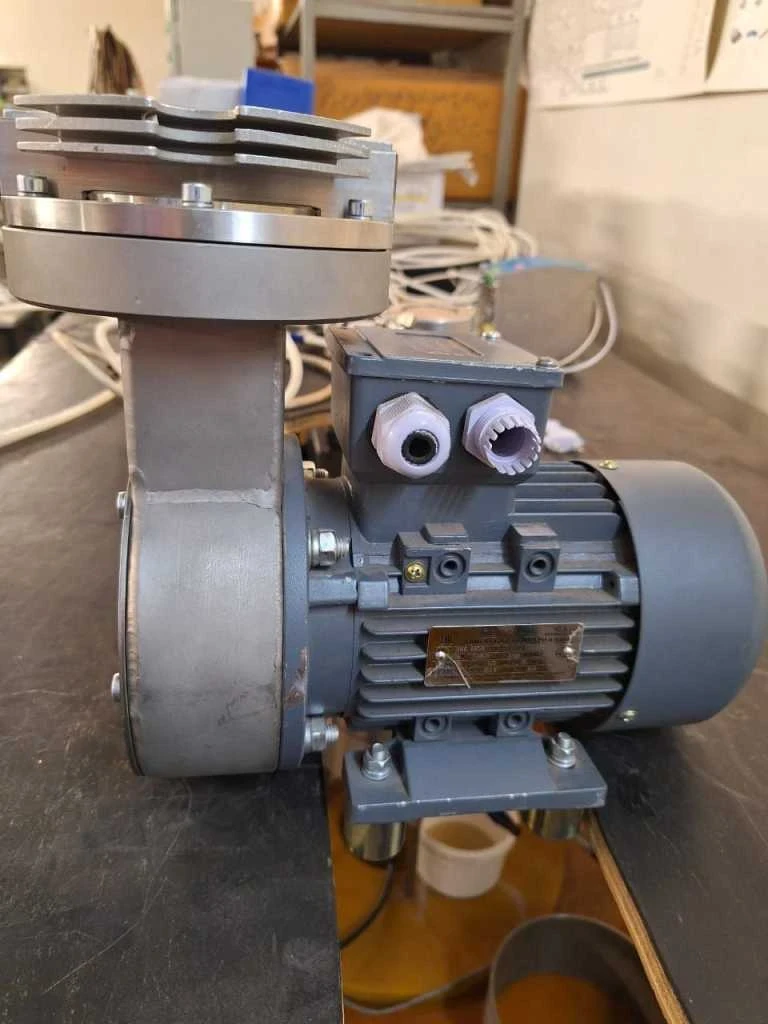

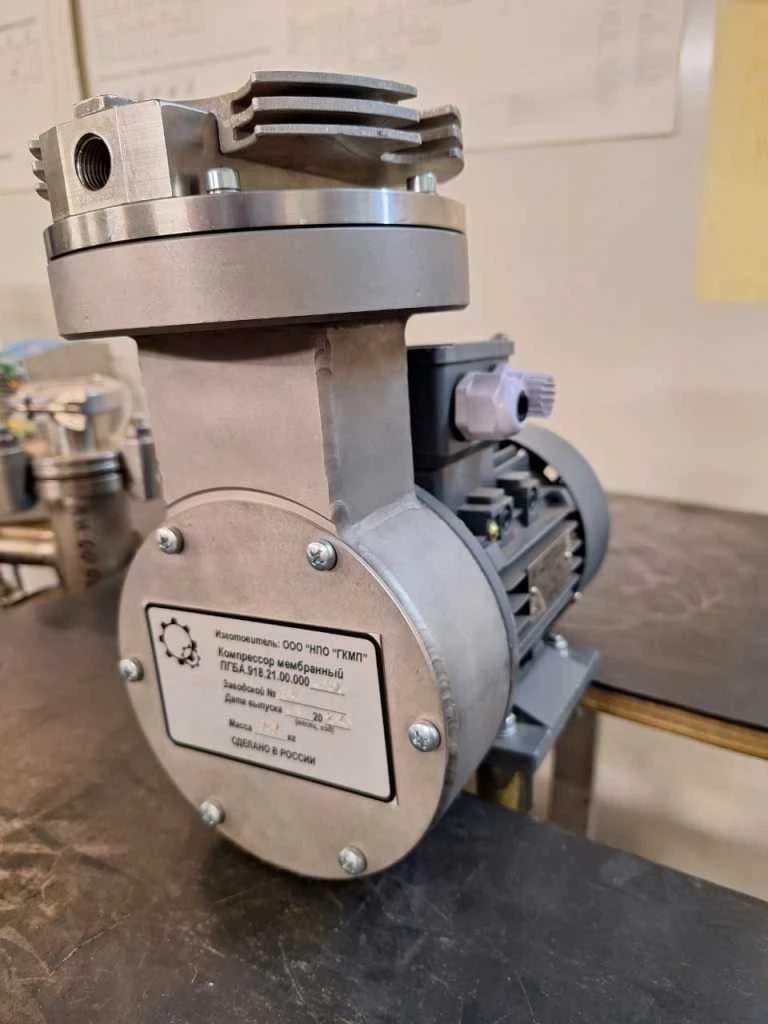

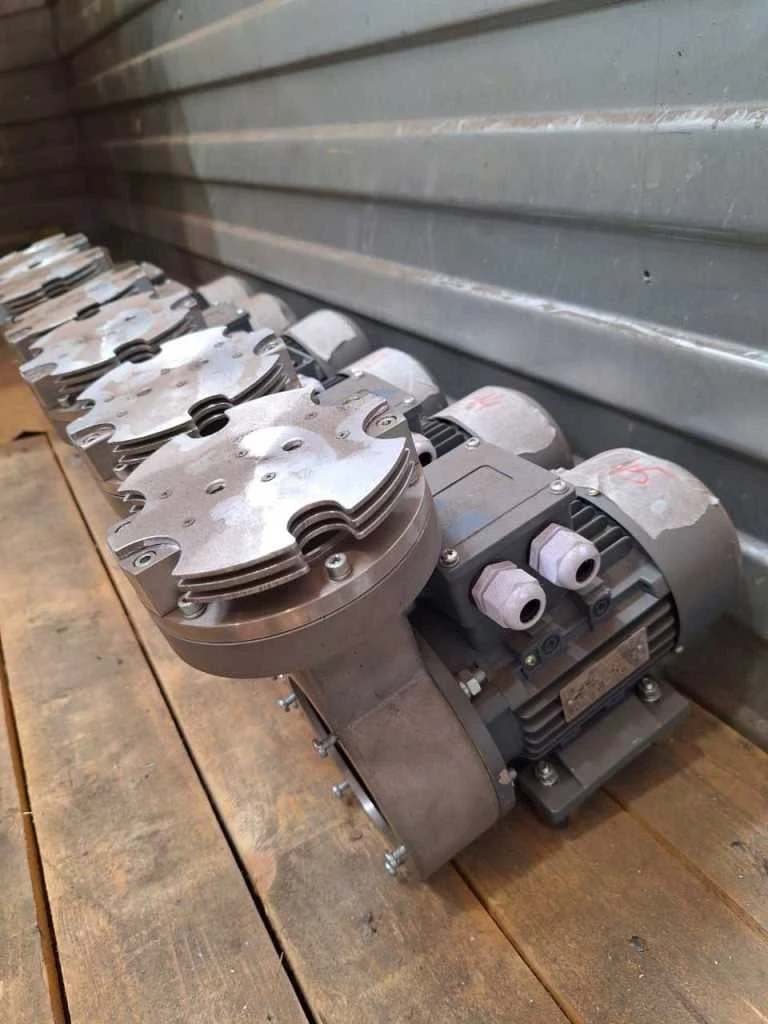

Diaphragm compressor

PGBA 918.21.00.000

Designed to increase pressure of the operating gas before its injected into technological hardware.

*On request

We will tell you in detail about our products, types and cost of delivery, prepare an individual offer and develop a technical specification

Place an order Get a commercial offer

Description

Specifications

The compressor is designed to increase the flowrate and pressure of the air, non-aggressive gases, vapor-gas mixtures free from any moisture and mechanical contaminants. Operates as a vacuum compressor.

Operating media: air, inert gases, nitrogen, vapor-gas mixtures from any moisture and mechanical contaminants.

The compressor can be used to purge furnaces with hydrogen provided that the site meets the fire risk factor G and D per Facility Standard 12.1310.2009.

Key characteristics of the diaphragm compressor

Max. efficiency at atmospheric pressure nm3/h (neper/min) 1.8±0.1(30±1.6)
Supply pressure, kPa 150
Max. residual pressure kPa (mmHg) 20 (150 kg)
Spatial attitude – any

Property	Meaning
Max. efficiency at atmospheric pressure, nm3/h (neper/min)	1,8±0,1 (30±1,6)
Supply pressure, kPa	150
Max. residual pressure kPa (mmHg)	20 (150)
Average failure-free operating time, h	5000
Average life till scheduled maintenance, h	1000
Electric motor power/network voltage, kW, V	0,25 / 380 V
Noise level	No more than 60
Dimensions ;LBH, мм	280140260
Mass, kg, no more than	11
