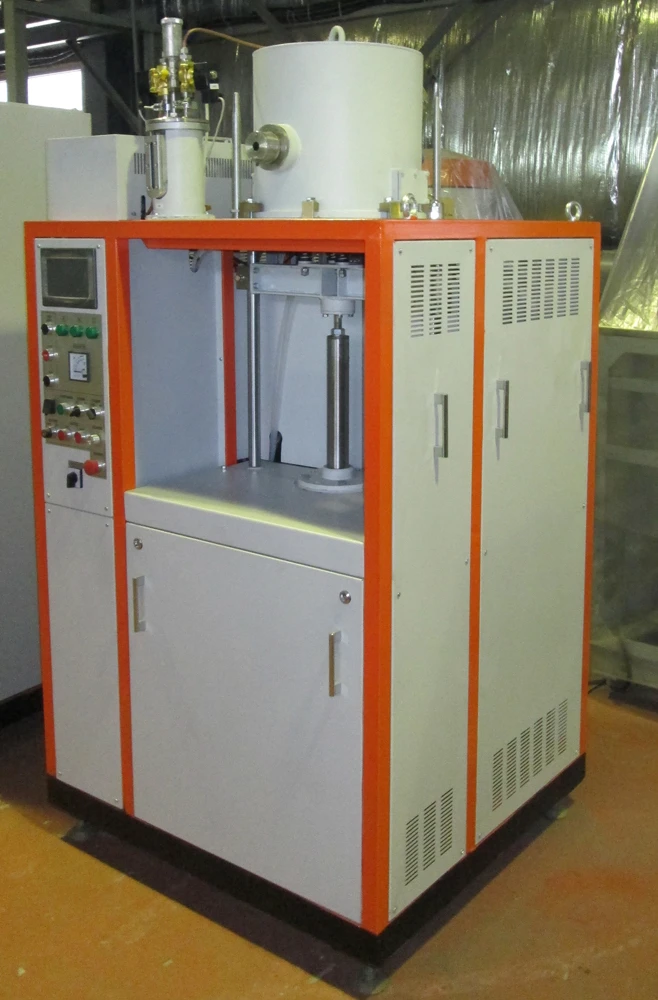

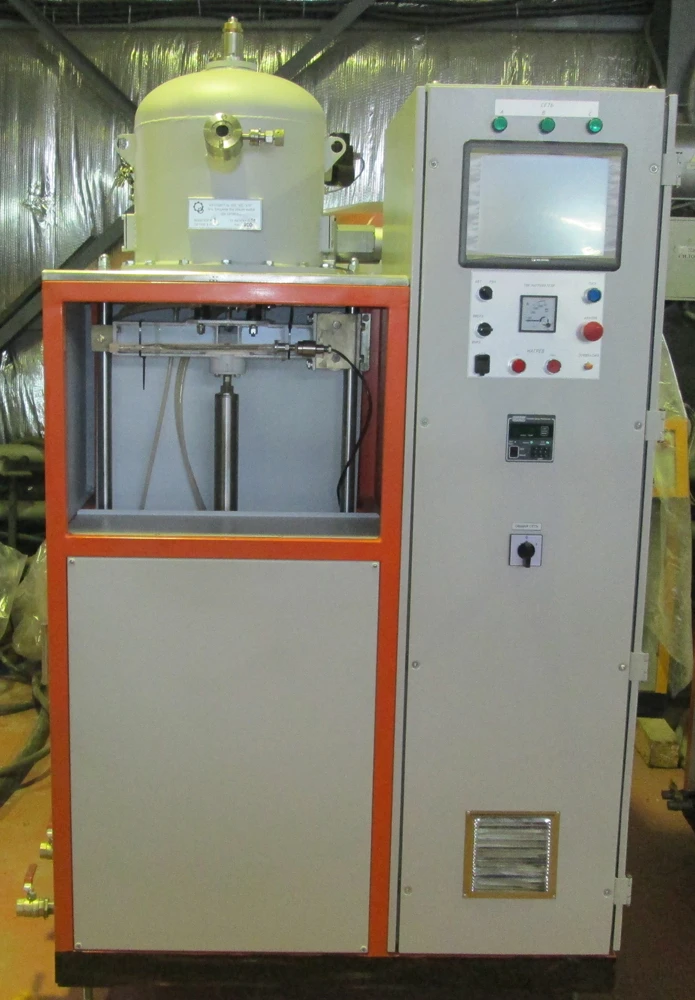

Small-size electric vacuum bell-type furnaces equiped with moving hearth bottom

A structural feature of this type of furnace is a fixed bell, inside of which screen insulation and a heating unit are fixed on the walls and the cover of the hood. A special hearth movement mechanism provides a smooth rise and lowering of the hearth, without jerking vibration and jamming.

After lowering the hearth bottom, horizontal putting of the batch with products under the hood is possible at a level convenient for the operator, which provides additional control and increases safety during operation. After inputting, the batch with the details rises with the hearth bottom into the working area of the heating chamber.

Such furnaces are made one-bell type. Heating elements can be of a cylindrical and strip type, from high-temperature resistance alloys (nichrome, eurofechral, kanthal A1), molybdenum, tungsten, tungsten-rhenium alloy. It is possible to create a furnace with a precision atmosphere, suitable for high-precision and extremely clean processes. Often, these furnaces are made in a modular design.
