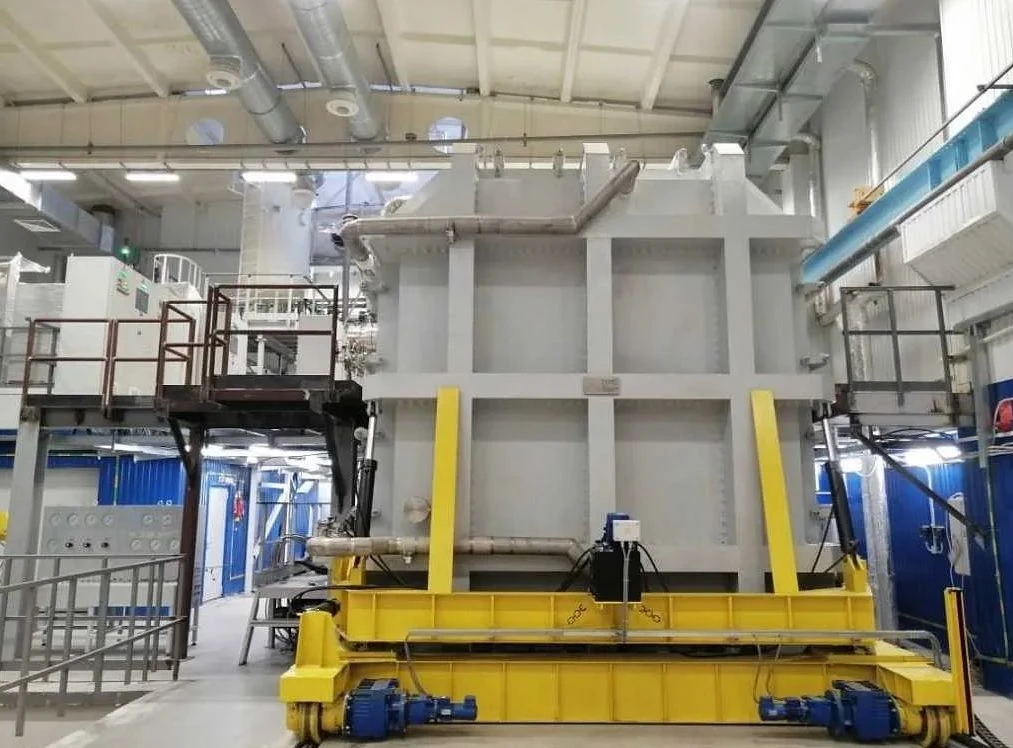

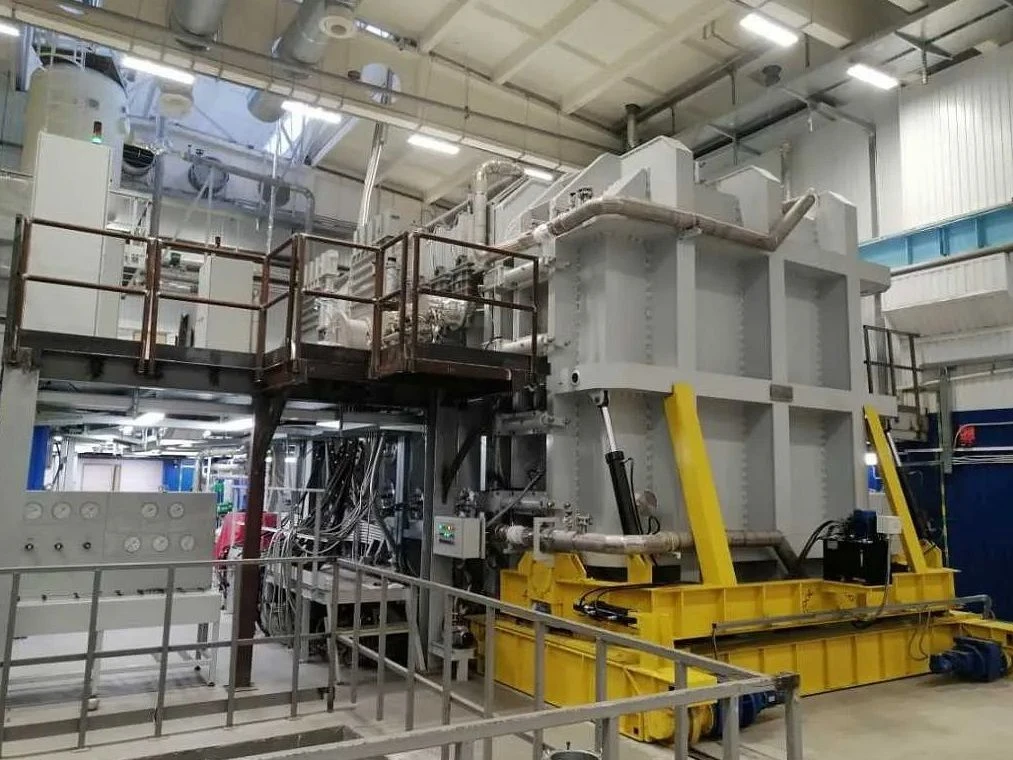

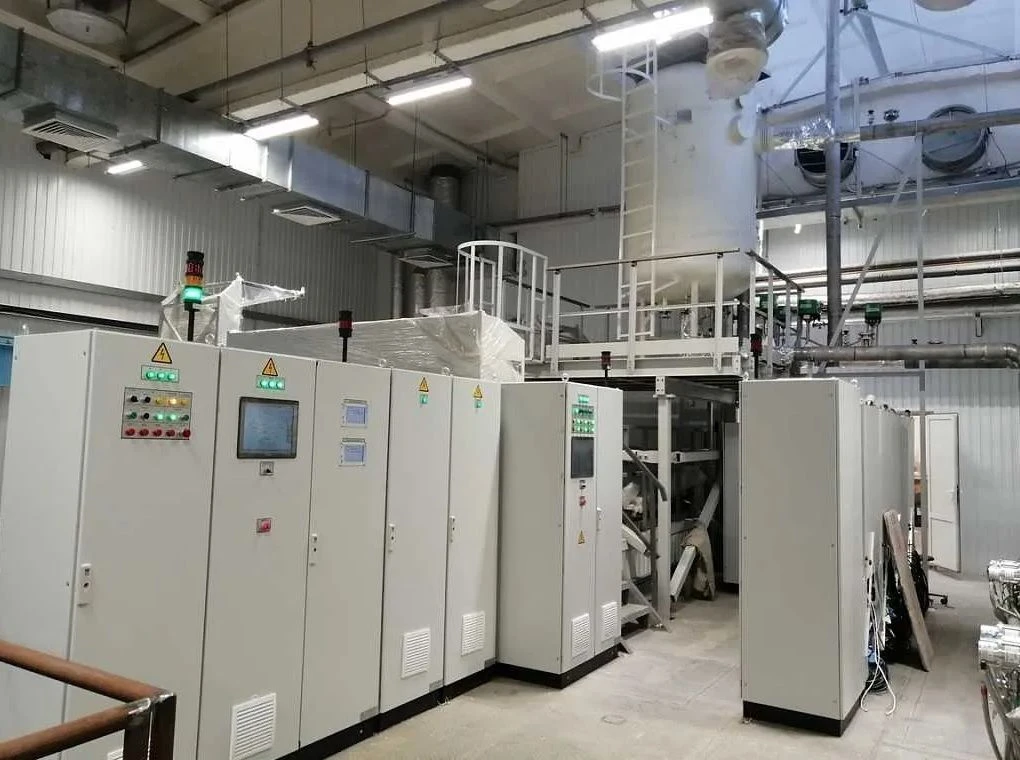

Thermal vacuum chamber TVC-110

Thermal vacuum chamber is designed to perform out gassing of objects, to manufacture honeycomb panels for spacecrafts (hereinafter referred to as S/C) and perform leak test of S/C modules.


More
*On request
We will tell you in detail about our products, types and cost of delivery, prepare an individual offer and develop a technical specification
Description
Specifications

TBK-110 is a comprehensive chamber that supports a wide range of test: outgassing, thermal cycling and leakage control.


Purpose: thermal vacuum test of components for GLONASS satellite system.


Depending on application purpose, vacuum chambers can be of different shape (cylindric, spherical, box-shaped, D-shaped)to be used for vacuum storage and drying, to simulate space environment, for different scientific research as part of technological facilities, as well as for industrial purposes.


When so required by Customer, the company can propose electropolished chamber made from the off-gage seals and flanges with special coatings or paint.


Our experts will gladly answer your questions.


Components:

  • Horizontal vacuum chamber for outgassing
  • Cover transfer device

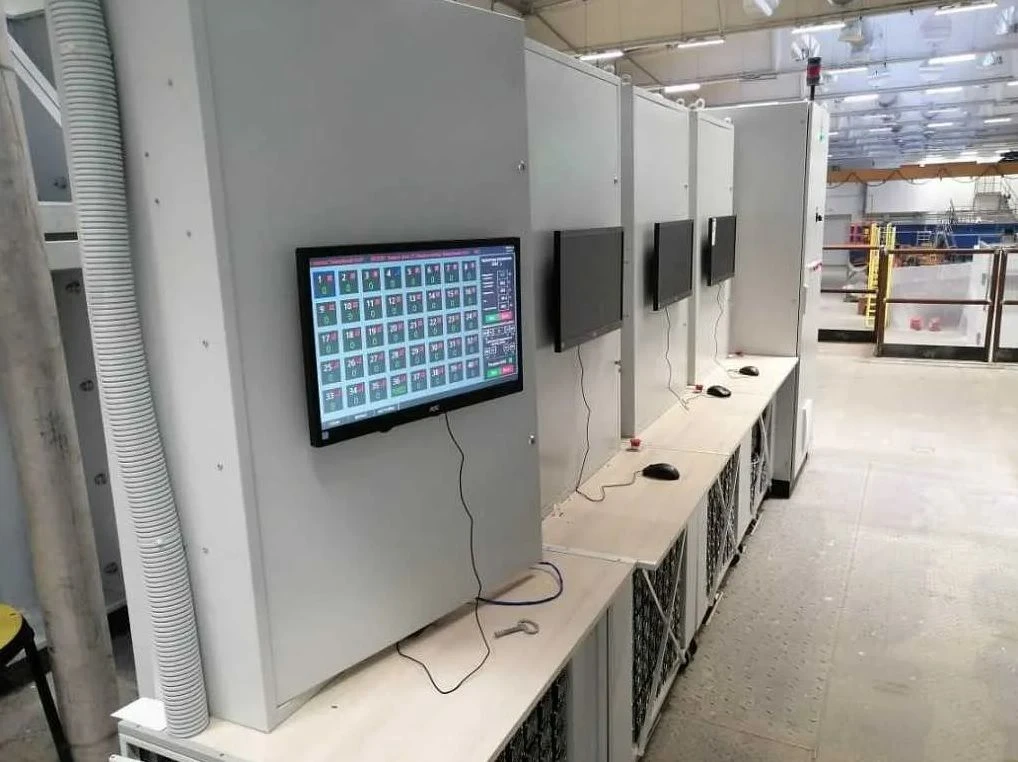

  • Cover transfer control device

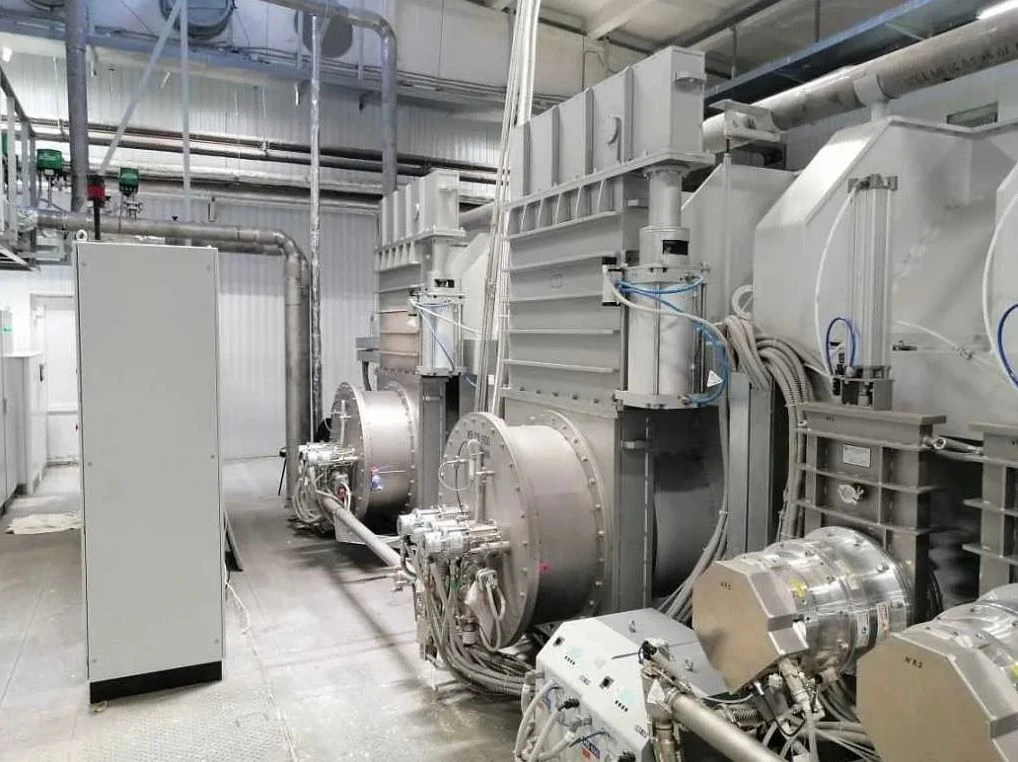

  • Vacuum pumping system
  • Depressurization system
  • Illumination system for scheduled maintenance
  • Technological table with the jig
  • Thermal flux imitator
  • Technological jig
  • Leak control system
Property Meaning
Operating pressure at the given temperature of nitrogen cryogenic screens (-180 ±10)°C, mm Hg <1*10-6
Operating pressure at the given temperature of nitrogen cryogenic screens +20 °C, mm Hg <1*10-5
Temperature of cryogenic screens, °C -180 ±10
Total leakage, l·µ mm Hg/sec Not to exceed 5
Thermal flux density, W/m² Up to 1400
Thermal flux density, full days 46
Continuous run time 12X18H10T
Material of the vacuum chamber: Width, mm Length, mm Height, mm 4000
8100
4500
