Thermalompression equipment

Thermocompression welding is the process of welding parts from dissimilar materials, carried out with heating under pressure. The essence of the process is as follows: when exposed to pressure and temperature on the treated surface, the material of one part settles and begins to flow along the second part. As a result of this, the contact site is heated, it is cleaned of the oxide film and other extraneous formations, the surfaces come together as close as possible and a tight weld is obtained. The advantages of the described process include low sensitivity to changes in operating parameters, stability of the entire welding process and process control by controlling pressure and temperature.

Thermocompression technology is used in powder metallurgy to create products from refractory materials, dissimilar metals and composites. Varying the process parameters, it is possible to obtain parts of complex shape with an identical composition, but different physicochemical properties.

Hot punching and burning processes are used in critical areas of production of complex products in the case where other production technologies do not allow to obtain the product of the proper quality.

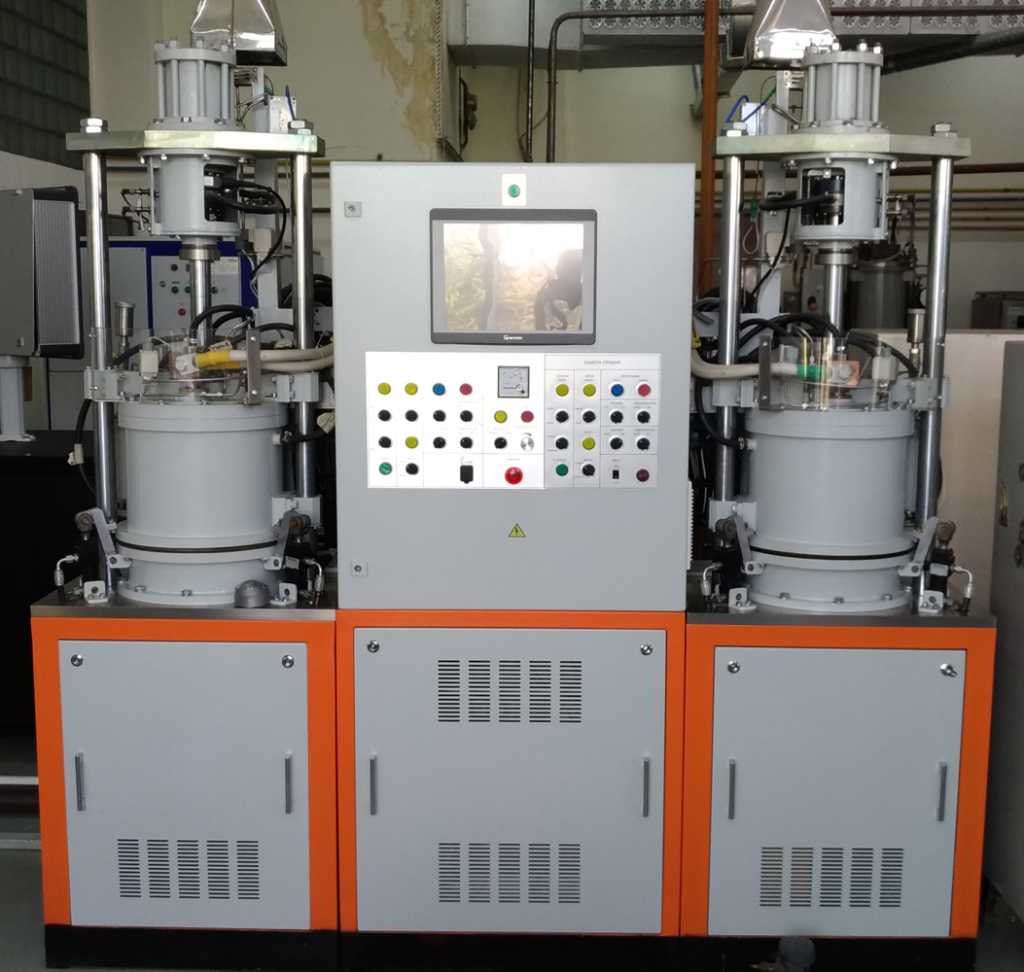

Thermocompression units manufactured by NPO GKMP are manufactured according to the customer’s technological map or strictly in accordance with the statement of work. Owing to the in-house production of electrothermal equipment, as well as extensive experience in creating pressurized chambers, pressurized inlets, controlled hydraulic cylinders, pneumatic cylinders and compression oil stations, it is possible to manufacture thermocompression units with various values of operating pressures - from several kilograms to tens of tons, and temperatures - up to 2200 ° WITH.

Thermocompression units manufactured by NPO GKMP are fully automated. The control system clearly fulfills feedback on the temperature of the welded joint and the applied force. The composition of the atmosphere or the degree of vacuum inside the chamber is continuously maintained at a given level. The control system fully fulfills all known emergency and emergency situations, and in the event of a non-critical failure it will help to successfully and accidentally complete the process.
