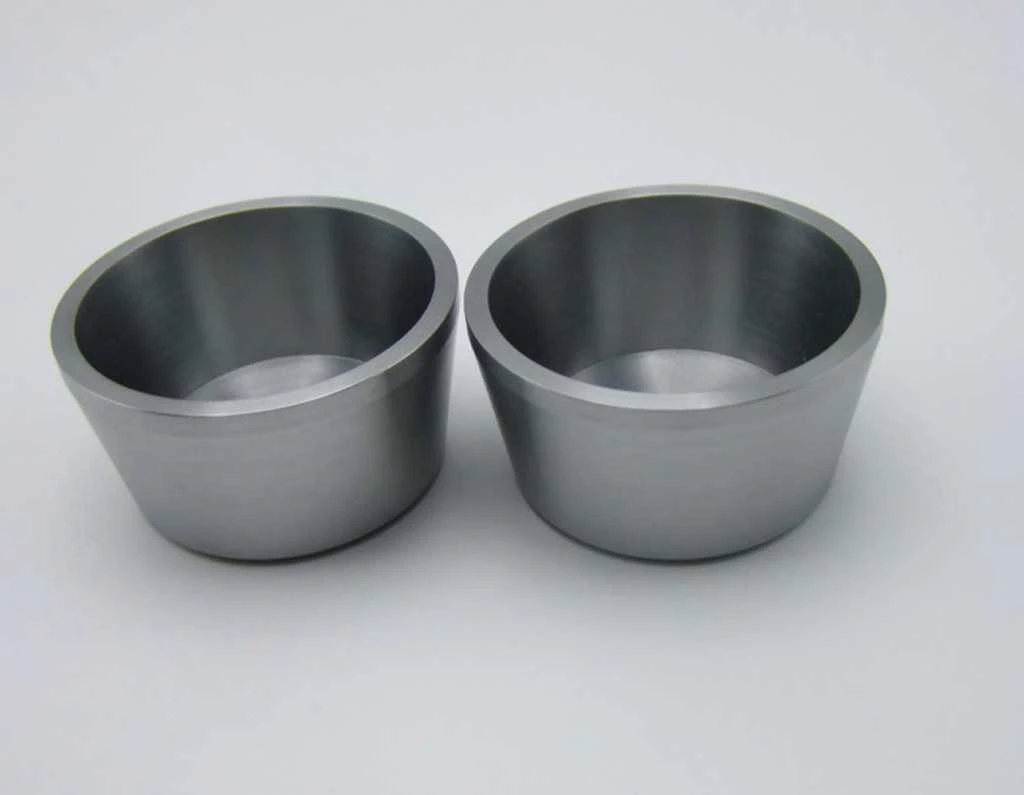

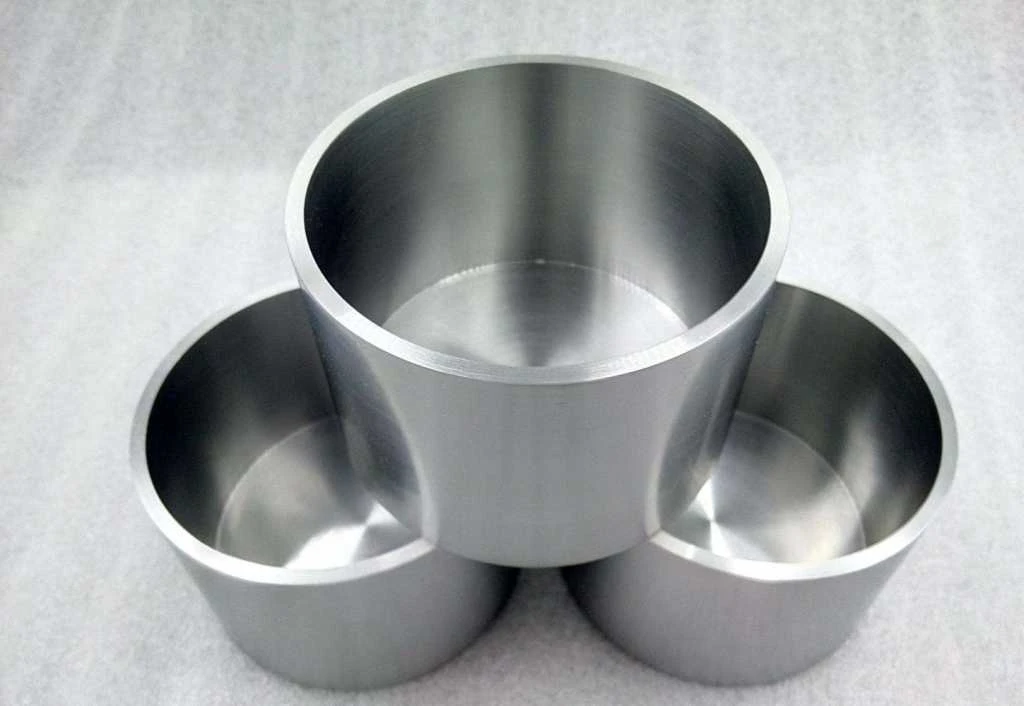

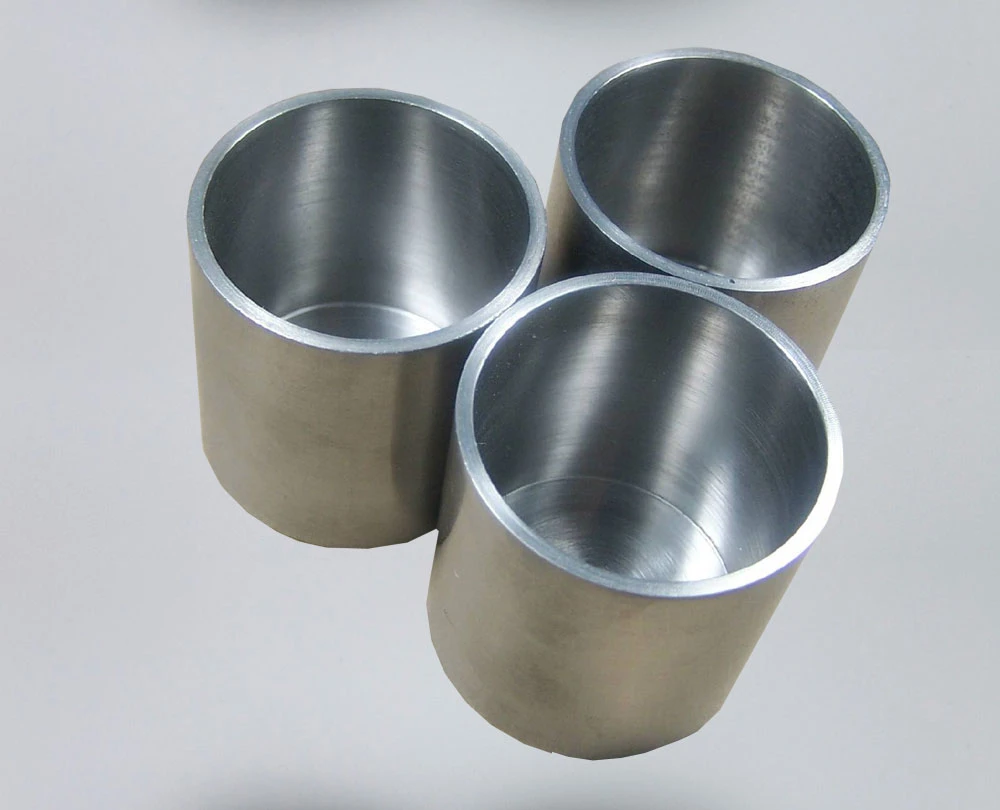

Tungsten crucibles

Thanks to high heat resistance and extraordinary refractory quality tungsten crucibles are used in furnaces operating in vacuum or another shielding medium.
More
*On request
We will tell you in detail about our products, types and cost of delivery, prepare an individual offer and develop a technical specification
Description
Specifications

Tungsten crucible is used to grow monocrystals (Read more about crystal growing machines on the website page gkmp32.com) for melting, sintering and annealing of powder materials, melting of quartz, rare-earth and refractory metals, and to deposit metallic film in vacuum (the temperature inside a furnace is over 2000°С).

Tungsten crucibles are widely used in metallurgy, metalwork, iron work and chemical industry. However, the most important role tungsten plays in leucosapphire crystal production; high density and purity, no internal cracks and perfectly smooth surface are crucial for quality crystal growing.

The key advantage of our tungsten crucible is that we can delivera customized crucible of any shape or size per Customer’s requirement: circular, rectangular, elliptic, V-shaped, cover-equipped, etc.

The price of a tungsten crucible is conditioned by specific production of tungsten units (tungsten is quite complicated to obtain in pure and rather hardly processed). Apart from that, the price of crucible depends on complexity and configuration, as well as from possible auxiliary requirement that may be imposed.

Technical characteristics:

  • High tungsten purity – above 99.95%;
  • High density – 18.2 g/cm3;
  • Surface roughness - Rz 6.3 max

Tungsten crucible is reliable and durable, has a high strength and elasticity, fit to withstand high temperatures in vacuum and inert gases (up to 2600°С).

Standard dimensions of crucibles:

Diameter (mm) Wall thickness (mm) Height (mm)

30-50

8-10

<1300

50-100

8-15

<1300

100-150

10-15

<1300

150-200

12-20

<1300

200-300

15-20

<1300

300-400

15-30

<1300

400-450

15-30

<1300

450-550

15-30

<1300

550-650

25-35

<1300

650-750

25-35

<1300

Tungsten crucibles for melting are produced by different methods depending on their application purpose:



  • Powder sintering (used for crucibles of any shape and dimensions);
  • Turning (complex machining of workpieces);
  • Plasma sputtering
