Hardware for high education and research institutions

To educate students and perform scientific research small size and low power facilities are required. Such facilities can be easily placed in any laboratory.
More
*On request
We will tell you in detail about our products, types and cost of delivery, prepare an individual offer and develop a technical specification
Description
Specifications

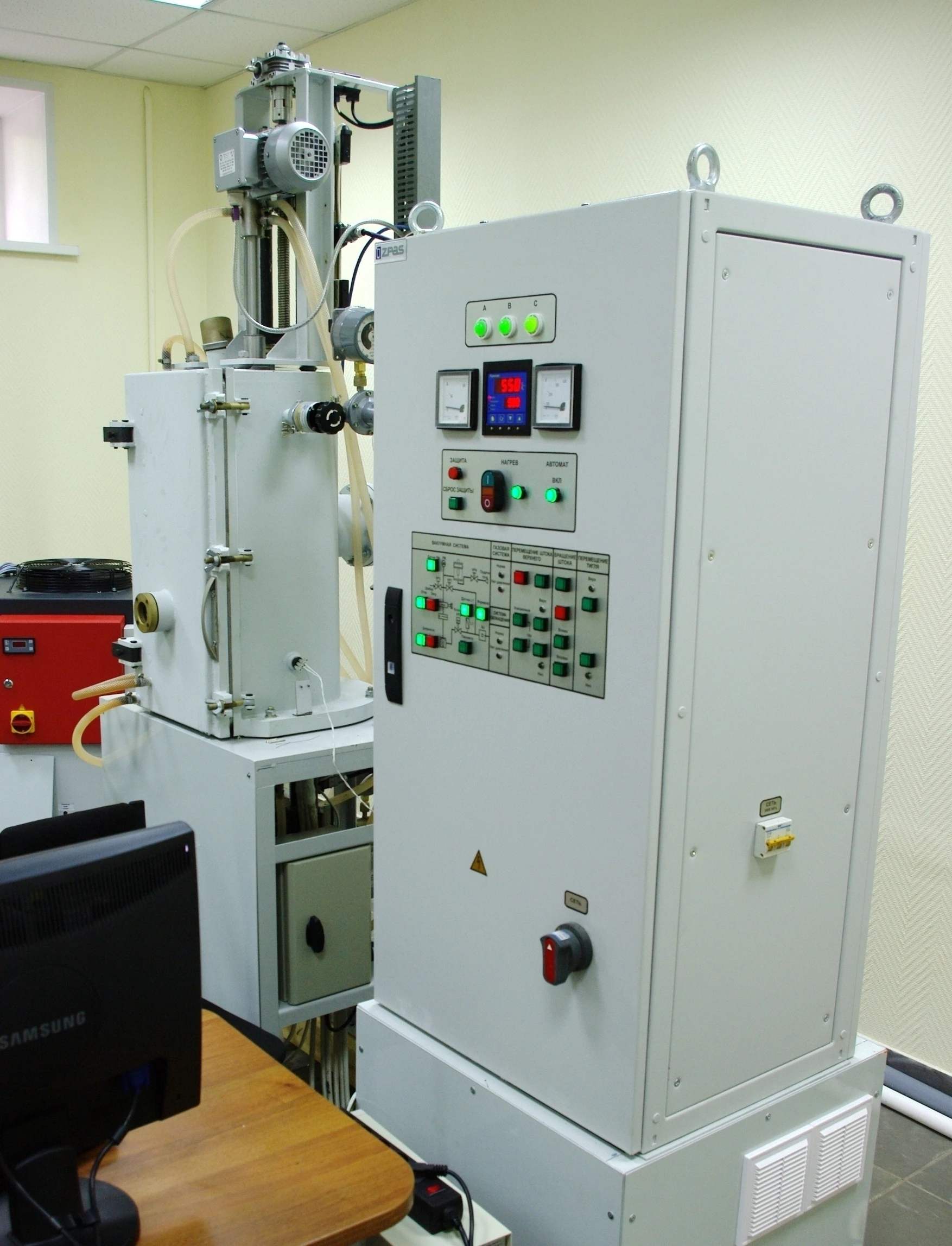

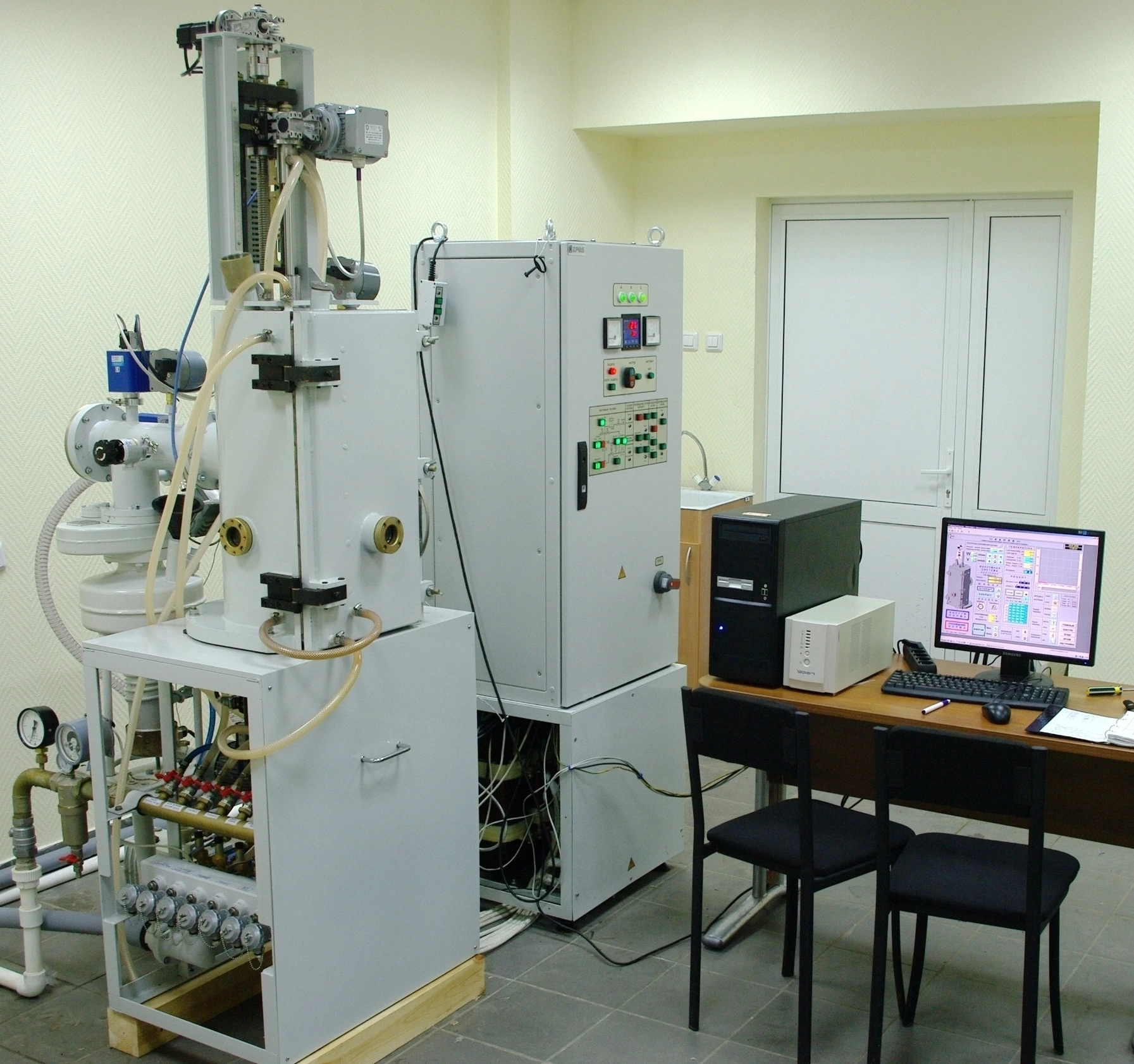

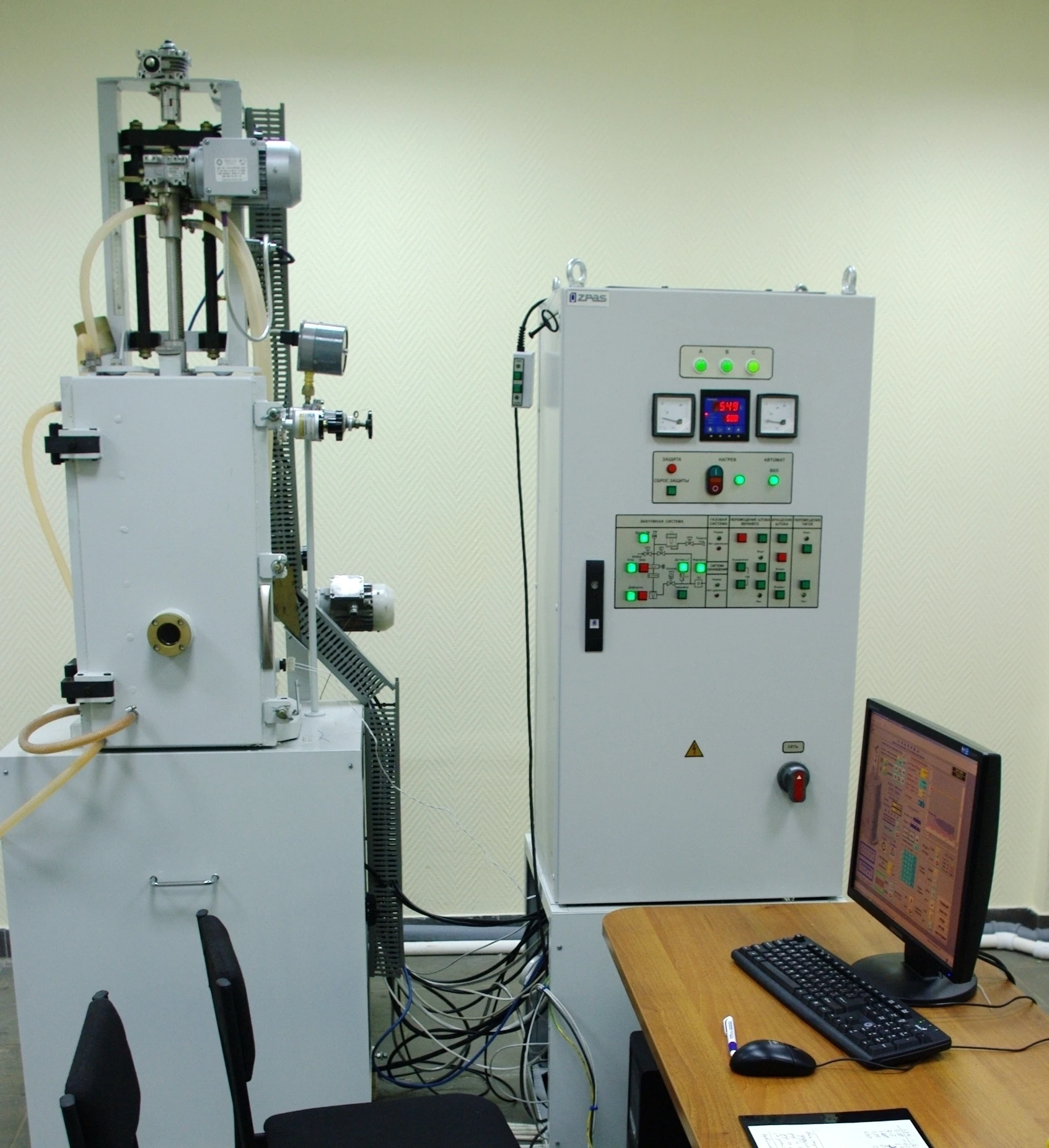

Small size laboratory facilities have smaller dimensions and lower power when compared to industrial hardware. However, they matchthem in terms of function required to grow crystals or perform different experiments.  Such hardware is essential for education and research purposes when there is no need to grow large size crystals or load too much material.

The hardware is delivered with the required set of replaceable parts and instruments. Our experts will help you to mount and commission hardware and train your staff.

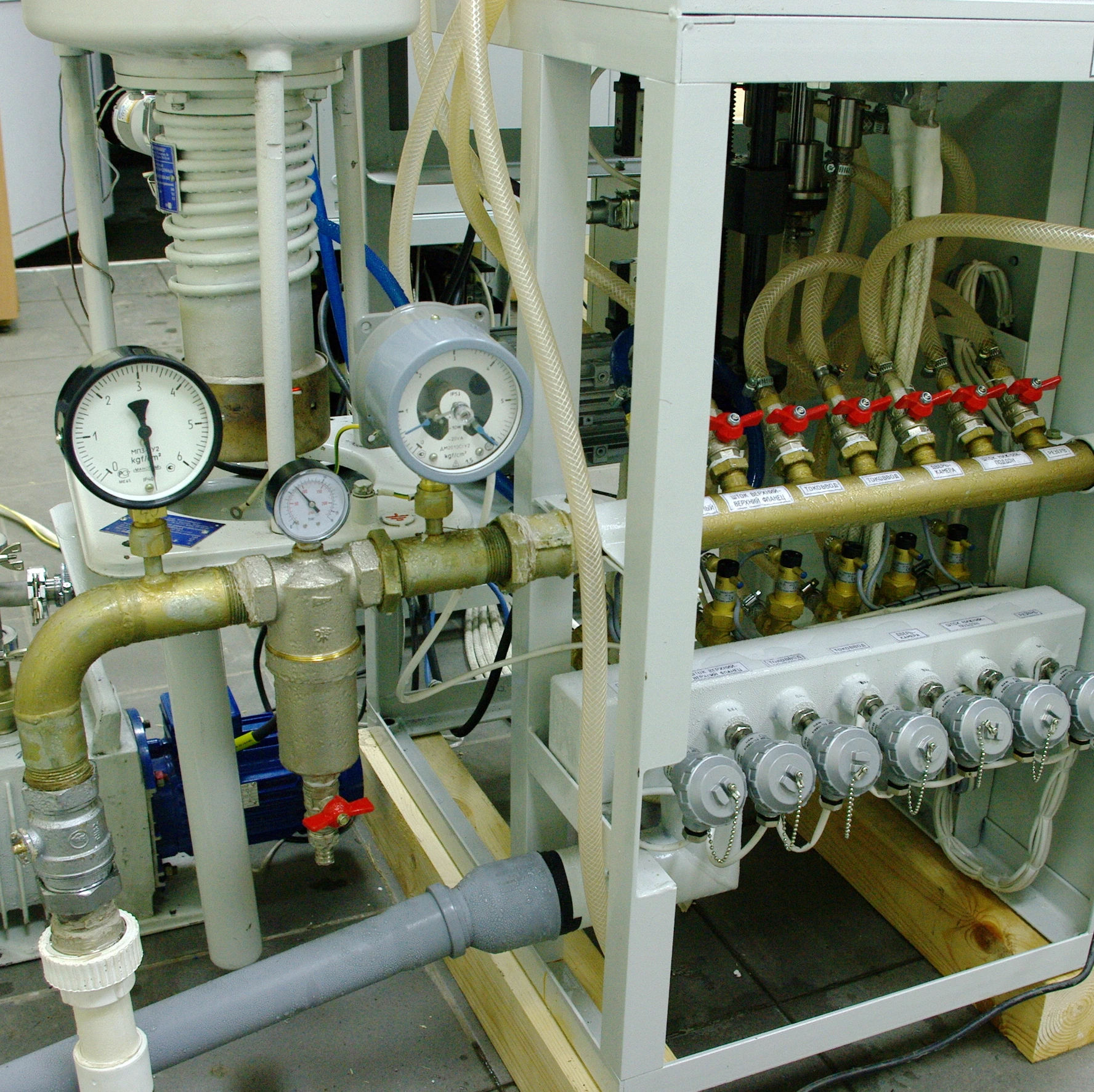

When so required, we can provide recirculated water supply system.

The facility is manufactured on request per approved Technical assignment. Any parameters can be changed in the way you require.

Benefits of machines for high education and research institutions

  • Operating chambers are manufactured from a variety of materials available: stainless steel, aluminum, titanium, copper, quartz.
  • Any crystal growing method: Kyropolus, Czochralski, OWC, Bridgeman, Stockbarger.
  • Manufacture of research facilities per Technical assignments.
  • Up-to-date mechanical systems with feedback.

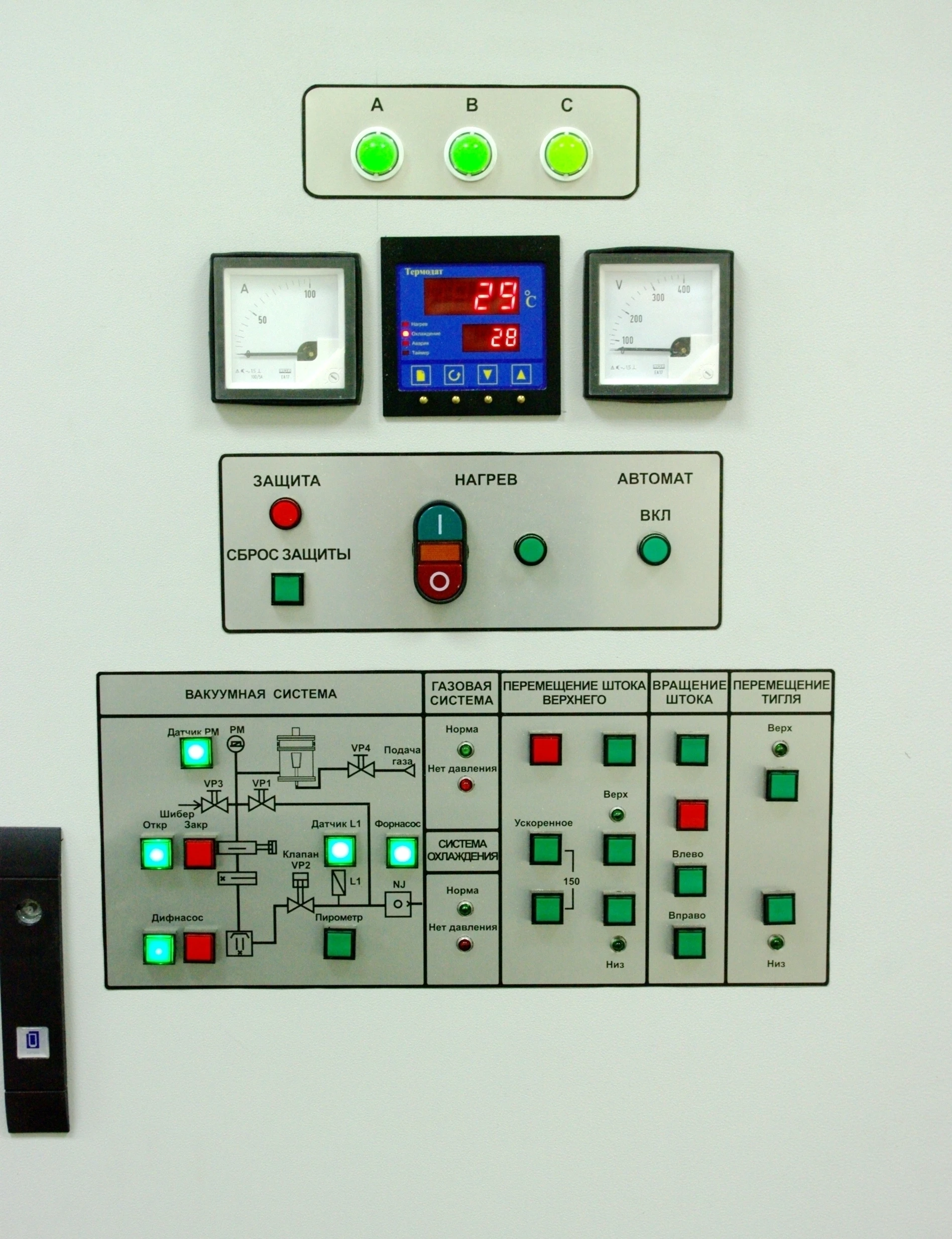

  • Control of any process parameters: current-voltage-power, temperature, diameter, mass.
Property Meaning
Crystal growing method

Czochralski, OWC, Kyropolus

Mass of the crystal, kg

Up to 5

Crucible/ampoule diameter, mm

Up to 150

Chamber internal dimensions (W*D*H), mm

400*400*600

Chamber material

12Х18Н10Т

Upper rod pace, mm

400

Lower rod pace (when required), mm

200

Rod speed (when required), mm/hmm/min)

from 0.1 to (10)

Rod rotation, r/min

1-30

Heating method

Resistive

Heater material

Graphite, tungsten

Heater power, kW

Up to 30

TV sensor

On request

Pyrometers and therocouples

On request

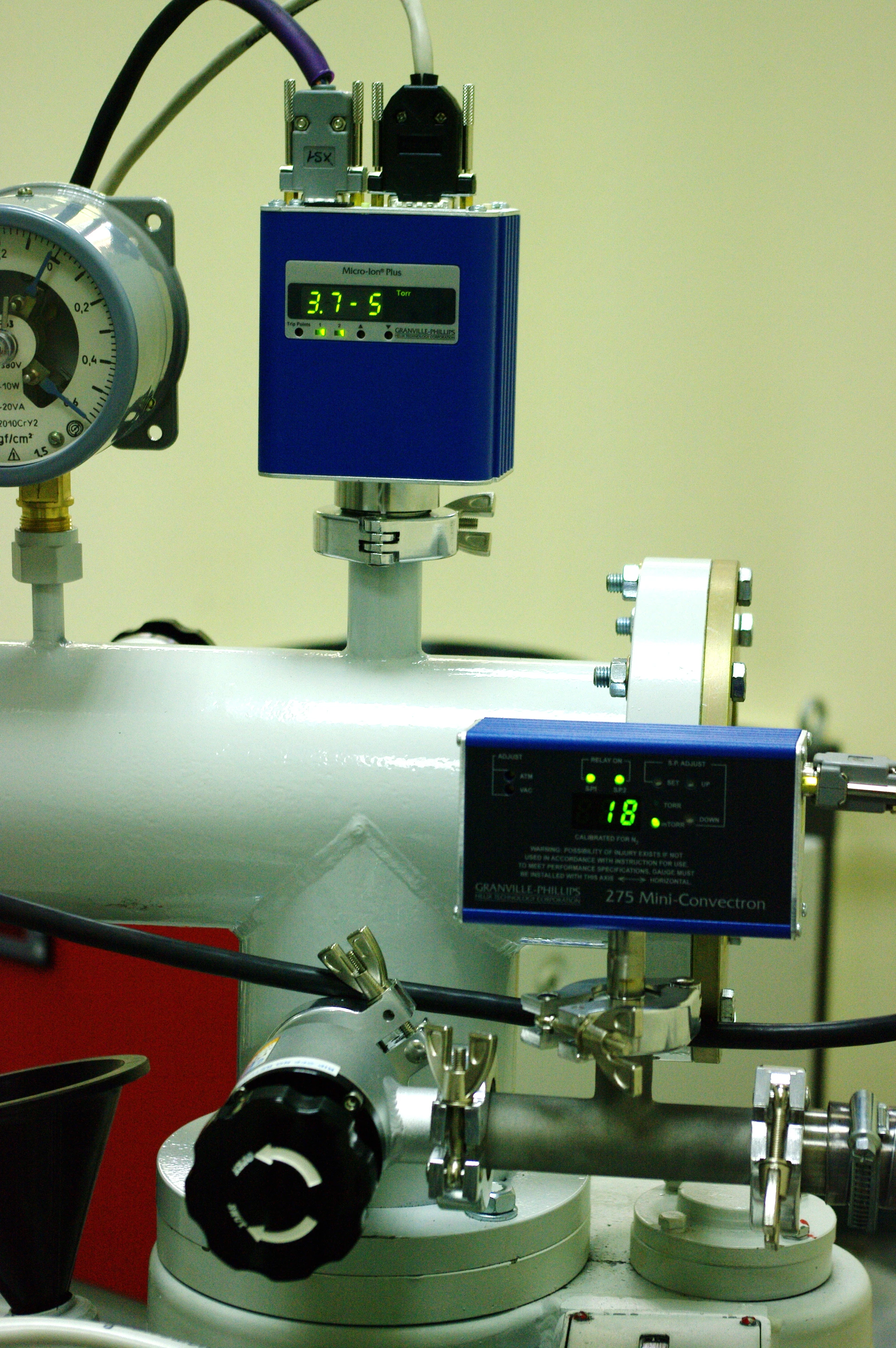

Vacuum, torr

Up to 5х10-5

Electric power parameters

3*(380±38) +N
