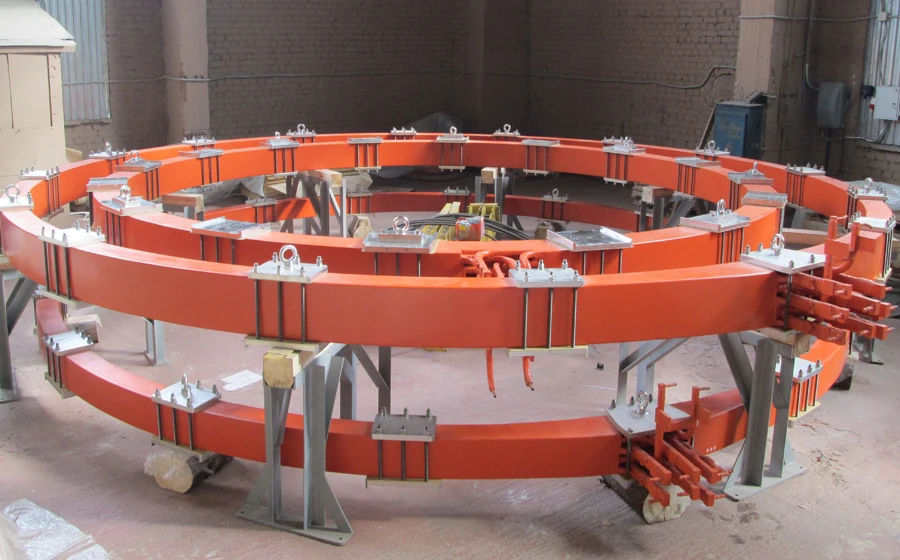

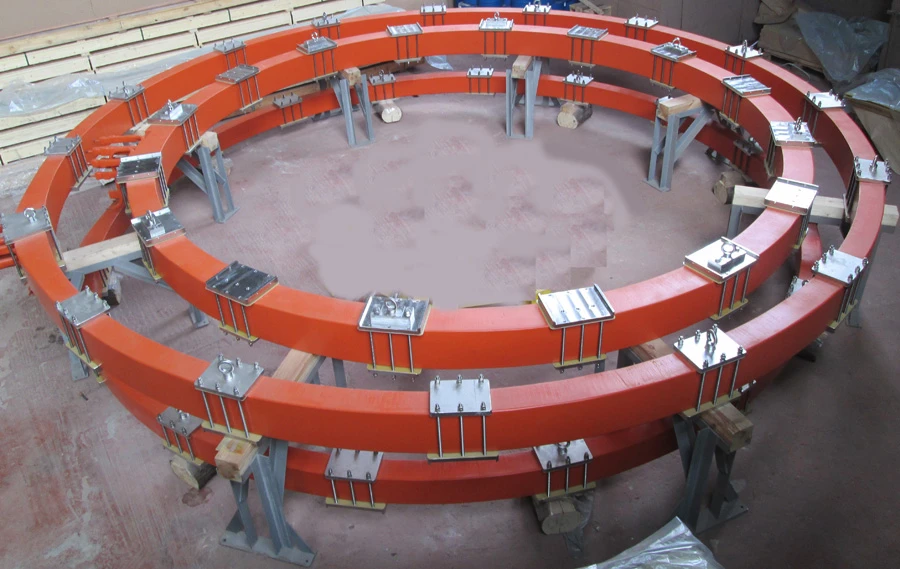

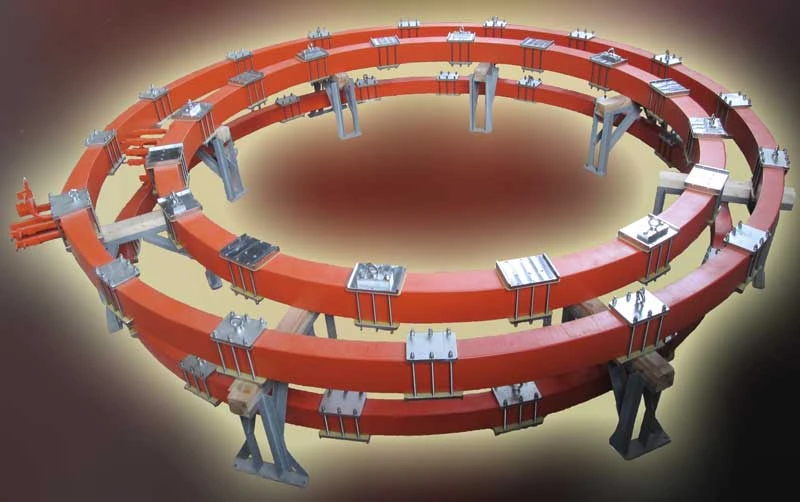

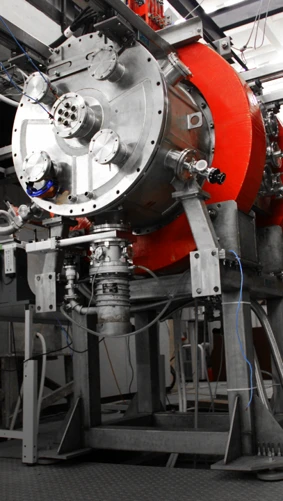

Electromagnetic coils OU3, OU4, OU5

Coils OU3, OU4, OU5 of the EMS T-15 control winding are represented by conductor coils, namely the copper tubes.

*On request

We will tell you in detail about our products, types and cost of delivery, prepare an individual offer and develop a technical specification

Place an order Get a commercial offer

Description

Specifications

Electromagnetic installation system T-15MD includes as much as six OUs and four spools of the OGUP horizontal field. The winding is designed to withstand overheating of more than 60 ºC and can be cooled down in between the 15s impulses.

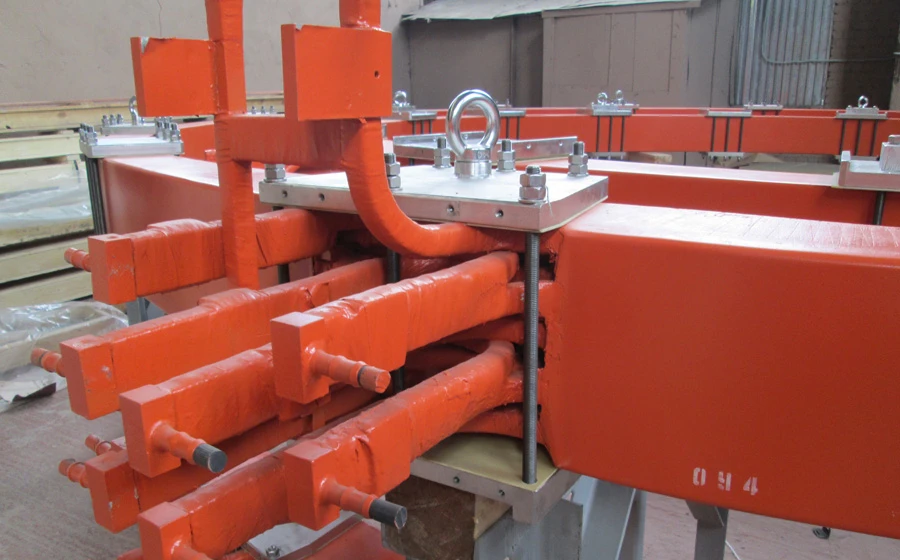

All control spools OU1-OU6 are coils composed of two double-layer sections winded by hollow copper conductors. Insulation is made of glass mica tape and glass tape with epoxy binder. In attachment point with the OTP coils the spools are equipped with power fittings (fixture segments) from stainless steel 15-20 mm thick, homogeneously distributed on the spool’s edge; under fixture segments the insulation of spools is reinforced by glass mica and rubber spacers preventing it from any damage.

Parameter	ОU1	ОU2	ОU3	ОU4	ОU5	ОU6	ОGUP
Number of coils	1	1	1	1	1	2	4
Number of coil sections	5	5	4	5	5	6	1
Number of turns	100	100	48	60	80	432	10
Surface and ⌀ of Cu-conductor, mm	22*22, ⌀10.5	23.5*23.5, ⌀8.8	22*22, ⌀10.5	23.5*23.5, ⌀8.8	23.5*23.5, ⌀8.8	23.5*23.5, ⌀8.8	18*18, ⌀8
Average turn length, m	5.47	14.6	19.1	20.4	16.5	4.67	12
Maximal current, kA	15	12	15.5	17	17	20.5	10
Number of parallel lines	5	10	8	10	10	12	1
Water flowrate, m³/h	1.2	4.3	1.9	4.3	4.8	5.7	1.4
Conductor heating temperature per impulse, ^оС	53	32	61	37	41	61	60

Parameter	OU3	OU4	OU5
Outer diameter, mm	6230	6640	5170
Internal diameter, mm	5930	6322	5050
Winding height, mm	210	277	277
Mass, kg	4050	6325	6950
