Pusher-type furnaces

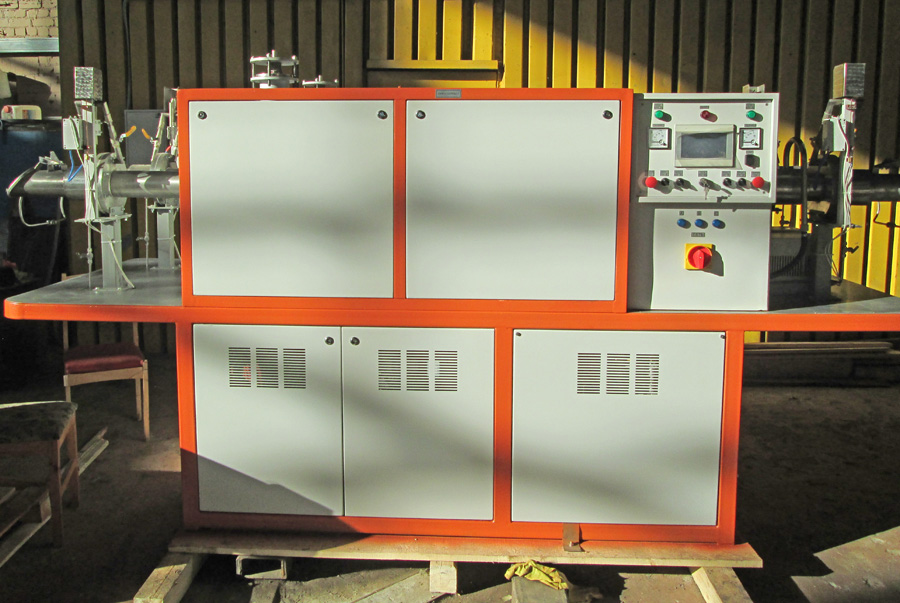

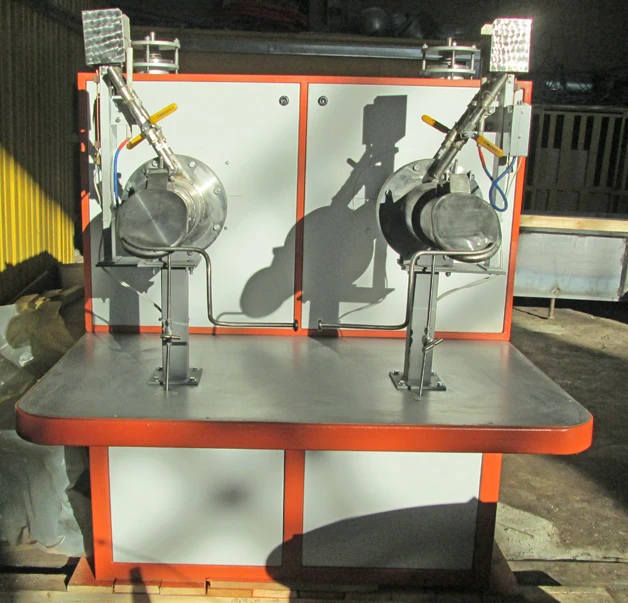

Type of furnace: two-bell pusher type hydrogen furnace — a continuous furnace through which heated products are transported by pushing them through the heating chambers using an electric pusher.

Main advantages:

• The possibility of heat treatment of small batches of products
• High percentage of suitable products, reproducibility of the process
• The flexibility of the process, the ability to select the optimal modes
• Resource saving

Property	Meaning
The number of working positions (heating chambers), pcs	2
The working space of the chamber (muffle), mm, not less than diameter length	100 1000
Working environment inside the furnace nitrogen hydrogen	(-15-20оС ) (-50оС )
Gas consumption, m3 / h, no more nitrogen hydrogen	0.5 0.5
Nitrogen pressure at the system input, kPa, no less than	5
Hydrogen pressure at the system input, kPa, no less than	3
Cooling water flow, m3/h, no more than	1.5
Water pressure at the water-cooling system input, Pa (kg*s/sm2), no less than	0.3*106 (3)
Maximum working environment temperature, °С	1400
Maximum time limit in accordance with maximum temperature, min	5 - 20 30 - 60
Temperature maintenance precision, not worse than, °С	±10
Electrical power consumption, no more than, kW	40
Heating type	resistive
Heater material	molybdenum
Total dimensions, mm, no more than length width high	3400/3700 1300/1400 1750
Weight, kg, no more than	3000
