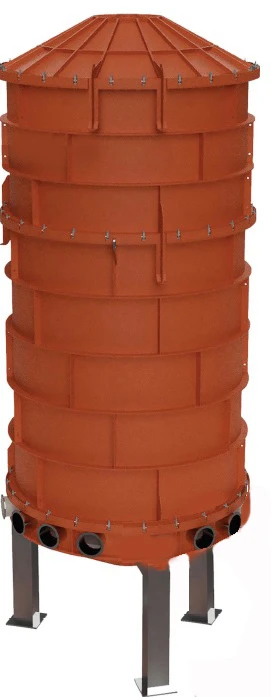

Cryogenic vacuum facility vu-180

VU-180 is a cryogenic facility with 5200 mm of internal diameter and 13100 high designed to test items in conditions that simulate space environment. The chamber is of modular architecture that enables to adjust the required operating volume.

*On request

We will tell you in detail about our products, types and cost of delivery, prepare an individual offer and develop a technical specification

Place an order Get a commercial offer

Description

Specifications

The “NPO “GKMP” LLC develops and produces vacuum chambers with embedded cryogenic screens. The latter can be cooled down with the help of liquid nitrogen or helium, as well as by cryogenic gas devices using the Gifford-McMahon closed cycle or a pulse tube. Flow-through cryogenic shrouds can be retrofitted with additional cryogenic tanks, nitrogen or helium liquefiers to ensure a non-stop operation 24/7. The selection of a proper cryogenic accessories of a vacuum chamber depends of actual application purpose of the Customer.

Cryogenic facility VU-180 is used to check the quality of parts, nodes, mechanisms and pieces, to check reliability of electronic devices and electronic components, to manage the quality of materials and coatings, etc.

Our experts will be happy to answer your questions.

Components:

Modular chamber
Internal technological table
Illumination system for scheduled maintenance
Pumping system -cryogenic vacuum pumps
Cryogenic shrouds
Liquified nitrogen supply system
System for item’s parameter measurements
Control system

Property	Meaning
Overall dimensions, mm:	5540
• outer diameter on primary structure, not to exceed, mm	5200
• outer diameter on shell ring, not to exceed, mm	800
• height of cylindric stationary section, mm	6700
• height of cylindric part of the spacer No.1, mm	3300
• height of cylindric part of the spacer No.2, mm	13100
Operating pressure, Pa (mmHg)	1.3*10^-3
Ultimate pressure inside the chamber, mmHg	5*10^-6
Total leakage of the vacuum chamber without any test object, l* µmHg/s	15
Average operating temperature on cryogenic shrouds, ^oC	-190 ± 5
Diameter of the inner technological table, mm	4300
Maximal load to inner technological table, kg	2500
