MAP, MAP-2, MAP-3 coating equipment

MAP, MAP-2, MAP-3 coating equipment

Vacuum coating systemsModern technological processes require modern high-tech solutions. So, in order to create unique materials, in one of the enterprises of the aerospace industry with the participation of leading specialists from a number of domestic enterprises, in 1995 a modern installation for coating MAP-1 was created. Subsequently, this equipment was subjected to repeated modernization, which led to the creation of modifications MAP-2 and MAP-3.

NPO “GKMP” has been a manufacturer of such equipment since 2012. Based on the existing experience in the manufacture of vacuum chambers,vacuum components and covable mechanism , hermetic inlets, pumping systems, we can safely say that at the moment it is possible to manufacture coating systems in vacuum of almost any configuration required by the customer. Own high-tech production, a vacuum laboratory equipped with modern equipment, as well as experience in design developments in this direction allow us to create the required installation in a fairly short time without overstating the cost of the finished equipment.

If necessary, it is possible to create an installation with box loading. This installation ensures the continuous presence of products in a vacuum, and loading and unloading occurs using separately sealed lock boxes. Thus, it is possible to obtain a production line with a continuous process of coating on substrates.

Parameter name

Value

Number of chambers in the installation:

1

Form of the chamber

cylindrical, rectangular

Dimensions of the working area of the chamber:
- diameter, mm:
- length, mm:

300...1500

500...2000

Substrate heating temperature, оС:

50...400

Material Spraying Method:

resistive heating, electron beam heating, ion-plasma magnetron sputtering

Substrate materials:

metals, alloys, ceramics, glass, single crystal plates

Coating materials

metals, alloys, nitrides, two-component compounds

The thickness of the coating, microns:

0,001...500 (determined by technology)

Possibility of vacuum cleaning by glow discharge:

yes

Possibility of sequential sputtering of several coatings in one process:

yes

Types of pumping systems used:

oil (rotary vane + diffusion pumps), oil-free (dry scroll + turbomolecular pumps)

Types of sensors for monitoring the thickness of the coating:

vibrational, quartz, optical (photometric), resistive, capacitive, combined

Substrates location in the chamber:

liberally, determined by the process technology

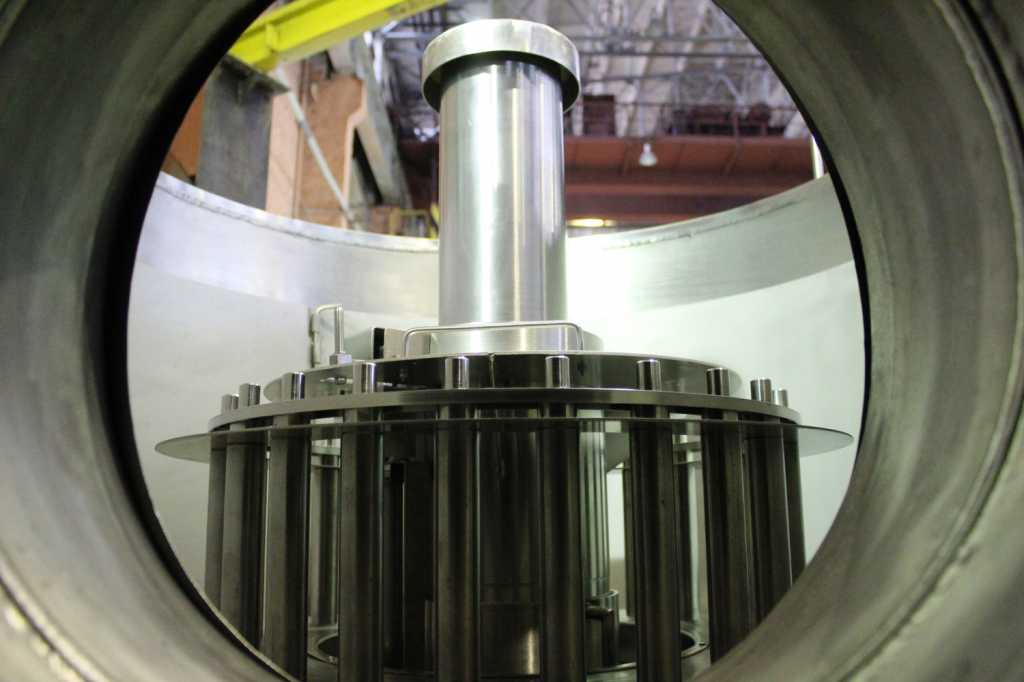

Possibility of carousel processing of substrates:

yes

Possibility of double-sided application:

yes
